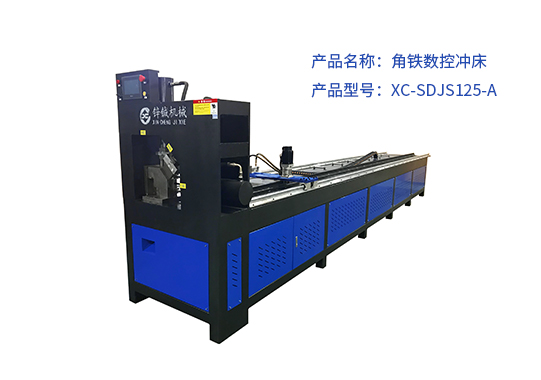

产品名称:角铁数控冲床
产品型号:XC-SDJS125-A
角铁数控冲床参数:
数控冲床货号:XC0027
品牌:锌铖机械
型号:XC-SDJD125-A
运动方式:点位
控制加工尺寸范围:6000(mm)
主轴转速范围:2500(rpm)
售后服务免费保修一年
工作台尺寸:400*300
刀具数量:3
-
-
产品信息
-
产品名称:角铁数控冲床
-
Product name: Angle iron CNC punch
-
型号
Model
XC-SDJD125-A 机械外形尺寸
Mechanical dimension (mm)6600*960*1640 行程
Trip (mm)100 输出压力
The output pressure (KN)160~180 电机功率/电压
Motor power (KW)/voltage (V)7.5-380 净重
The net weight(KG)1800 -
钢结构角铁冲孔机,角钢工程全钢角架网打孔机。角铁数控冲床集送料-冲孔-裁断为一体的全自动角钢数控冲孔机,专为3#-6#角钢做电线塔、钢构大棚、通风管道、空调架、升降机、电梯井字架等设计自动化生产线。
Angle iron CNC punching machine is an automatic Angle steel CNC punching machine, which integrates feeding, punching and cutting. It is specially designed for 3#-6# Angle steel wire tower, steel frame, greenhouse, ventilation pipe, air conditioning frame, elevator, shaft frame and other design automatic production line
